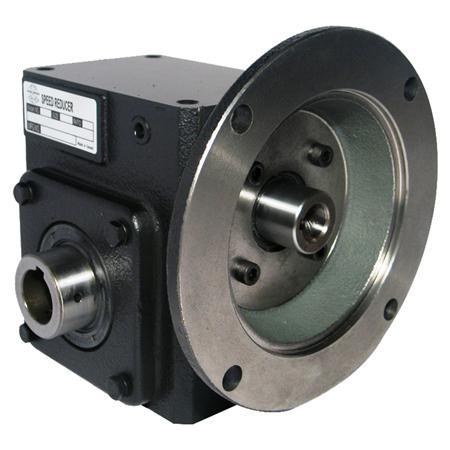

Flange Input-Hollow Bore Output

Worm gear reducers are available in C-Face mount in four different assemblies; right hand, left hand, double shaft, and hollow bore output. Bases are sold separately. Gear speed reducers come with double lipped oil seals and double bearings used on both ends of shaft. All worm gear reducers are universally interchangeable.

  • 5:1 - 60:1 ratios
  • Box sizes 1.33 – 3.25
  • One piece # FC20 all cast iron housing
  • Embedded double-lip oil seals
  • Double bearings used on both shaft ends
  • Anti-rust primer applied inside and outside gearbox
  • S45C carbon steel shafts
  • Albc3 aluminum – bronze gear
  • Interior oil channel guide directly and constantly lubed bearings
  • Tapered roller bearing on output and input shafts
  • All angle – radiused mounting holes
  • Air dry special black paint
  •  Shaft sleeve protects all shafts
  • Compact design – compact space capability
  • Units filled with Mobil #SHC634 synthetic oil
  • Universally interchangeable
  • 1-year warranty
