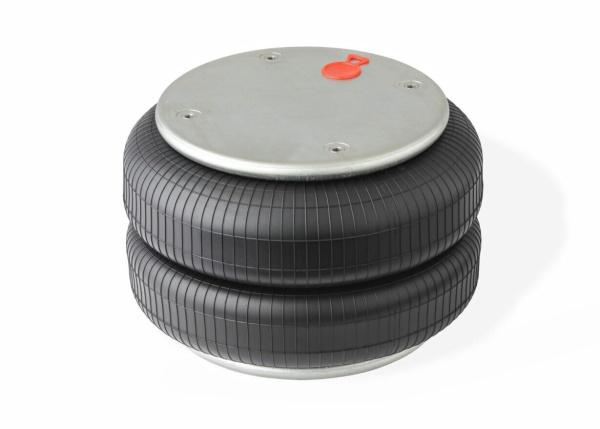

Continental Air Spring Actuator

Model: FD110-15 CI 3/4 in. NPT

Price Each: Call for Availability

Total Price: $151.88

Quantity:

Product Details

Pressure p (psi): 40psi to 120psi

Force (Load) (ibf): 677 to 2140

Spring rate (ibf/in.): 356 to 988

Natural frequency (Hz): 2.3 to 2.1

Air Inlet: 3/4 in. NPT

Overall Height Min Max: 6.1 in - 6.89 in

Max Stroke: 6.15 in

Installation Space Required: 8.46 in

Weight: 4.6 lb

Product Files

Data Sheet

Air Spring Double Convolution Air Actuator
Double Convolution Air Actuators type of pneumatic device used in a wide range of applications.
They are known for their robust construction and versatility.
Key features of Double Convolution Air Actuators:
Load Range: They have a maximum stroke (Pounds-force) from 820 - 53,990 lbf @80 PSIG
Stroke Range: They have a maximum stroke range of 3.1" - 10.4"
Versatility: They are used in a wide range of applications due to their ability to handle a large load range and stroke range.
Durability: They are designed for a long service life and are extremely durable.
Maintenance: They require minimal maintenance.
One example of a Double Convolution Air Actuator is the FD 40-10 CI from Continental Industry. It is recommended for use in a dotted range >165 mm only after consultation with ContiTech. The recommended height for vibration isolation is 160 mm. It has a minimum pressure of 0 bar and a return force to minimum height of ≤ 200 N. The overall weight of the FD 40-10 CI is 1.3 kg.
