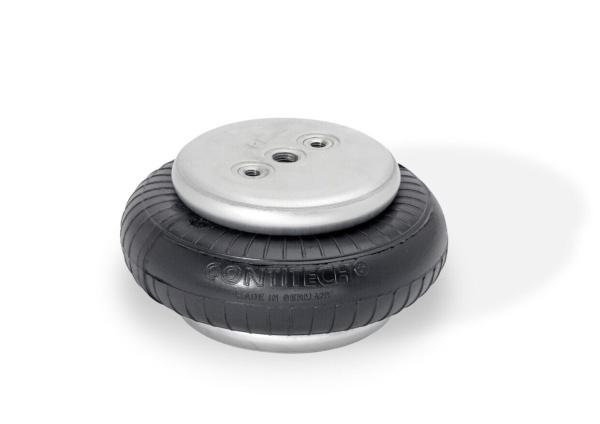

Continental Air Spring Actuator

Model: FS70-7 CI 1/4 in. NPT
Price Each: Call for Availability
Total Price: $114.92
Quantity:

Product Details

Pressure p (psi):  40psi to 120psi

Force (Load) (ibf):  553 to 1800

Spring rate (ibf/in.):  562 to 1370

Natural frequency (Hz):  3.2 to 2.7

Air Inlet:  1/4 in. NPT

Overall Height Min Max:  2.76 in - 3.54 in

Max Stroke:  2.52 in

Installation Space Required:  7.09 in

Weight:  2.6 lb

Product Files
Air Spring Single Convolution Air Actuator
Single Convolution Air Actuators type of pneumatic device used in a wide range of applications.
They are known for their robust construction and versatility.
Key features of Single Convolution Air Actuators:
Load Range: They have a maximum stroke (Pounds-force) from 820 - 53,990 lbf @80 PSIG
Stroke Range: They have a maximum stroke range of 3.1" - 10.4"
Versatility: They are used in a wide range of applications due to their ability to handle a large load range and stroke range.
Durability: They are designed for a long service life and are extremely durable.
Maintenance: They require minimal maintenance.
One example of a Double Convolution Air Actuator is the FD 40-10 CI from Continental Industry. It is recommended for use in a dotted range >165 mm only after consultation with ContiTech. The recommended height for vibration isolation is 160 mm. It has a minimum pressure of 0 bar and a return force to minimum height of ≤ 200 N. The overall weight of the FD 40-10 CI is 1.3 kg.
