Koyo Snap Ring Bearing

Model: 6208NRC3

ID. 40 MM-1.5748 OD. 80 MM-3.15 W. 18 MM-0.709

Price Each: 50.50

Total Price: $50.50

Quantity:

Product Details

Manufacture: Koyo

Bore MM: 40

Bore Decimal: 1.5748

OD MM: 80

OD Decimal: 3.1500

Width MM: 18

W Decimal: 0.7090

ABEC: ABEC-1

Static Load Rating: 3,650

Enclosure: Open Non Sealed

Interchange: FAFNIR 208KDDG, FAG 6208-2ZNR, MRC 208SFFG, NDH Z477508

Weight: 0.80

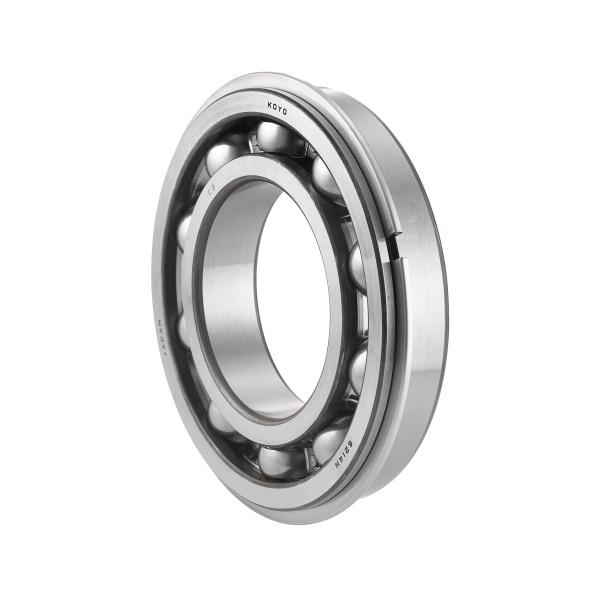

JTEKT - KOYO - TOYODA Deep Groove Ball Bearings Snap Ring Type
Deep groove ball bearings are available in a variety of sizes and are the most popular of all rolling bearings. This type of bearing supports radial load and a certain degree of axial load in both directions simultaneously.

Shielded / Sealed Type bearings are pre-lubricated for the life of the bearing.
Snap Ring Type bearings allow locating in the housing for axial positioning.
Open Type bearings are widely used in enclosed environments like gear boxes where lubrication is provided.
