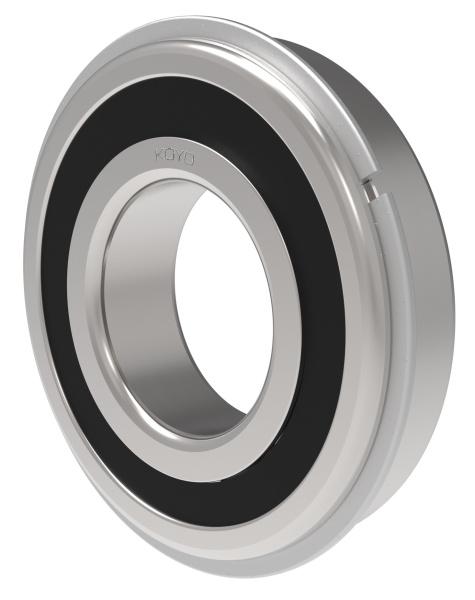

Koyo Snap Ring Bearing

Model: 63042RSNRC3

ID. 20 MM-0.7874 OD. 52 MM-2.0472 W. 15 MM-0.5906

Price Each: 36.58

Total Price: $36.58

Quantity:

Product Details

Manufacture: Koyo

Bore MM: 20

Bore Decimal: 0.7874

OD MM: 52

OD Decimal: 2.0472

Width MM: 15

W Decimal: 0.5906

ABEC: ABEC-1

Static Load Rating: 1,715

Enclosure: Double Sealed

Interchange: BCA 304SDD, FAFNIR 304NPPG, FAG 6304-2RSNR, MRC 304SZZG, NTN 6304LLUNR

Weight: 0.320

JTEKT - KOYO - TOYODA Deep Groove Ball Bearings Snap Ring Type
Deep groove ball bearings are available in a variety of sizes and are the most popular of all rolling bearings. This type of bearing supports radial load and a certain degree of axial load in both directions simultaneously.

Shielded / Sealed Type bearings are pre-lubricated for the life of the bearing.
Snap Ring Type bearings allow locating in the housing for axial positioning.
Open Type bearings are widely used in enclosed environments like gear boxes where lubrication is provided.
