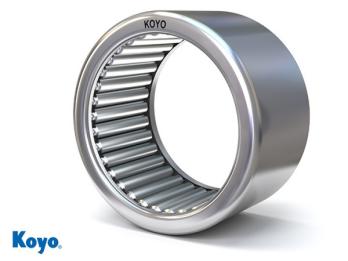

Drawn Cup Needle Bearing

Model: B-59-Koyo
ID. 5/16" -0.312-OD. 1/2"-0.500-W. 9/16"-0.563
Price Each: 6.94
Total Price: $6.94
Quantity:

Product Details

Bore Fraction:  5/16"

Bore:  0.3120

OD Fraction:  1/2"

OD:  0.5000

W:  0.5630

W Fraction:  9/16"

Working Load:  1,500

Static Load Rating:  2,550

Appropriate Inner Race:  See IR Inch Inner Rings

Interchange:  TORRINGTON B59, INA S59, KAYDON CS59

Weight:  0.02


Drawn Cup Needle Bearing B Series
The original drawn cup needle roller bearing, as invented and introduced by Torrington, employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings.
