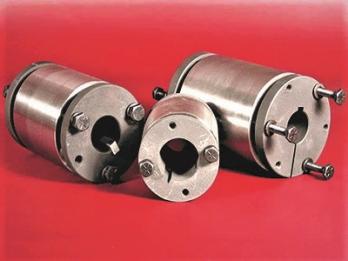

BCS Sleeve Coupling

Model: BCS-SD
Price Each: Call for Availability
Quantity:

Product Details

Manufacture:  Masterdrive

Size:  SD

Length:  5-5/32"

Bore/Range Min.- Max.:  1/2" - 2"

Outside Diameter:  3-1/8"

Torque Inch Lbs.:  5,000

Weight:  4.35

Product Files
BCS Sleeve Coupling
T*= Maximum Recommended Torque in inch pounds for Normal Service. These ratings should be reduced by 50% for Heavy Duty Service.
Note: Two Bushings will need to be ordered per coupling. See the required bushings to complete your coulping. You can also see our data sheet for torque ratings. All sizes made out of Steel.
