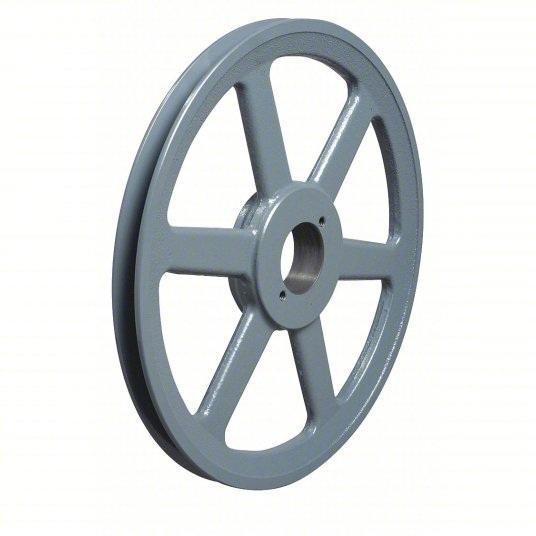

B-Section Single Groove Pulley BK80H

Model: BK80H

B-Section Groove 1 Outside Dia. 7.75" Req. Bushing H

Price Each: 49.24

Total Price: $49.24

Quantity:

Product Details

Manufacture: AMEC Industrial

Belt Section: 5L, B, BX

Grooves: 1

OD: 7.75

Belt Top Width: 5/8" - .660

Bore/ Bushing Type: H

Weight: 4.45

BK-H bushing V-Belt sheaves ( pulleys ) is an excelent choice for inch and metric shafts. Or click the link for the bushing section you desire: Inch H Bushings or Metric H Bushings , See required bushings below. BK Sheaves are accurately machined from fine grained cast iron, statically balanced, painted and individually packaged. The belt series most common for this pulley is 5L, or B , BX, V-Belts. Keyway not included see keyway section for ordering.
