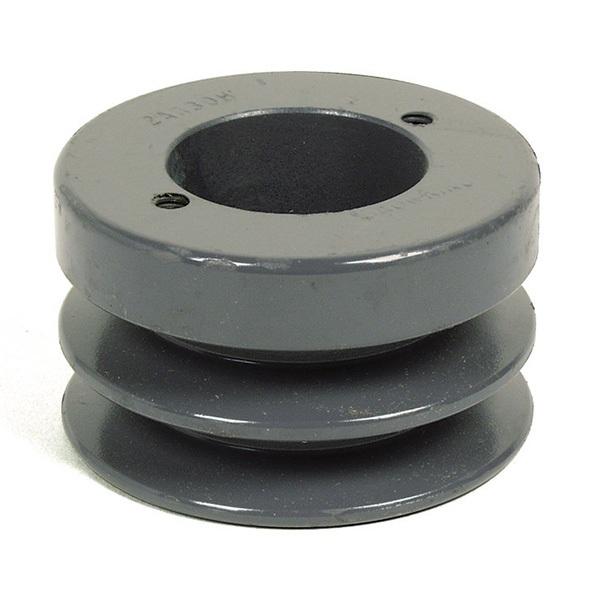

B-Section Double Groove Pulley 2BK40H

Model: 2BK40H
B-Section Groove 2 Outside Dia. 3.95" Req. Bushing H
Price Each: 35.75
Total Price: $35.75
Quantity:

Product Details

Manufacture:  AMEC Industrial

Belt Section:  5L, B, BX

Grooves:  2

OD:  3.95

Pitch Diameter:  3.60

Belt Top Width:  5/8" - .660

Bore/ Bushing Type:  H

O.L.:  2.37

Weight:  1.7

Product Files

2BK-H bushing V-Belt sheaves is an excelent choice for inch and metric shafts. Or click the link for the bushing section you desire: Inch H Bushings or Metric H Bushings , See required bushings below.BK Sheaves are accurately machined from fine grained cast iron, statically balanced, painted and individually packaged.
The belt series most common for this pulley is  5L, or B , BX, V-Belts.Keyway not included see keyway section for ordering.

Related Products
Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
H-1/2
H-1/2"
Price: $9.85
Quantity:
H Bushing No Keyway

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel.
H-5/8
H-5/8"
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-3/4
H-3/4"
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-7/8
H-7/8"
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-1
H-1"
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-1-1/8
H-1-1/8"
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-1-3/16
H-1-3/16"
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-1-1/4
H-1-1/4"
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-1-3/8
H-1-3/8" *
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
* Indicates shallow keyseat-keystock is supplied with bushing.
H-1-7/16
H-1-7/16" *
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
* Indicates shallow keyseat-keystock is supplied with bushing.
H-1-1/2
H-1-1/2" *
Price: $9.85
Quantity:
H Bushing Inch

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
* Indicates shallow keyseat-keystock is supplied with bushing.
H-17MM
H-17MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-19MM
H-19MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-20MM
H-20MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-22MM
H-22MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-24MM
H-24MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-25MM
H-25MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-28MM
H-28MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-30MM
H-30MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
H-35MM
H-35MM
Price: $12.50
Quantity:
H Bushing Metric

H or QT Split-Taper Bushings

These are for use with A-Section (4L and A) and B-Section (5L and B) V-belts as well as pulleys. The solid flange and double-split barrel improve concentricity and provide strong clamping on the shaft. As you tighten the included cap screws, the bushing grips the shaft and draws into the pulley. The bushings have a 3° taper and are made of steel. Keyed to both the shaft and the hub to help during blind installations.
