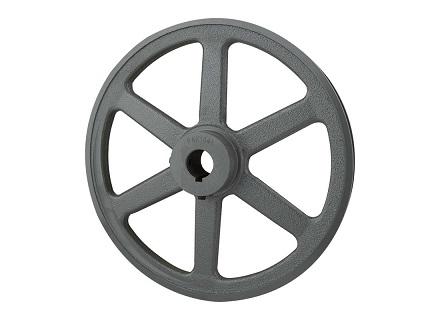

Single Groove AK144-1" Sheave

Model: AK144-1"
Fixed Bore 1 GRV. Sheave for (2L 3L 4L or A Belts)
Price Each: 126.89
Total Price: $126.89
Quantity:

Product Details

Manufacture:  AMEC Industrial

Grooves:  1

Pulley Diameter:  14.25"

Pitch Diameter:  14"

Bore:  1"

Length Through Bore:  1-5/32"

Keyway:  1/4 X 1/8

SAP #:  20179925

Weight:  10.9

Product Files
AK  Finished Bore Sheaves for (2L 3L 4L or A Belts)
AK Sheaves are accurately machined from fine grained cast iron, statically balanced, painted and individually packaged. They are furbished with Standard Keyseats and Hollow Head Setscrews. The V-Belts you that can run in this pulley are 2L, 3L, 4L, or A, V-Belts. The belt series most common for this pulley is the 4L and A section. Keyway not included see keyway section for ordering.
