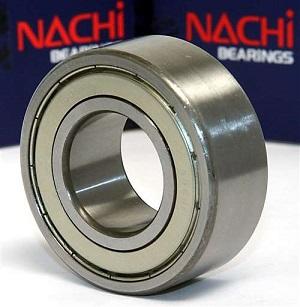

Double Row Bearing

Model: 5308-ZZ

Double Row Bearing

Price Each: 91.81

Total Price: $91.81

Quantity:

Product Details

Bore MM: 40

Bore Decimal: 1.5748

OD MM: 90

OD Decimal: 3.5433

W MM: 36.51

W Decimal: 1.4375

ABEC: ABEC-3

Enclosure: Double Shield

Static Load Rating: 9,170

Interchange: FAG 3308B.2ZR, SKF 5308A-2Z

Weight: 2.380

Double Row Angular 5200 5300 Contact Ball Bearings
Double Row Angular Contact ball bearings have two rows of balls arranged back-to-back. The lines of action of the load at the contact between balls and raceways (load lines) diverge at the bearing axis and form an angle of 30° to the radial plane. In essence, they work similarly to having a matched pair of Single Row Angular Contact ball bearings either face-to-face or back-to-back. The difference is that Double Row Angular Contact ball bearings can take a bi-directional axial load in one bearing where it takes a matched pair otherwise. This means the bearings are particularly suitable for accommodating simultaneously acting radial load and axial load in both directions. They are also available with seals or shields.
Double Row Angular Contact ball bearings may offer some economic benefits as well as handling and mounting benefits versus pairs of Single Row Angular Contact ball bearings; however, they may offer less design flexibility and performance in some cases.
Double Row Angular Contact ball bearings are available in two numerical series:

5200 Series – Lighter load, higher speed, more/smaller balls per bore diameter.
5300 Series – Heavier load, slower speed, fewer/larger balls per bore diameter.
