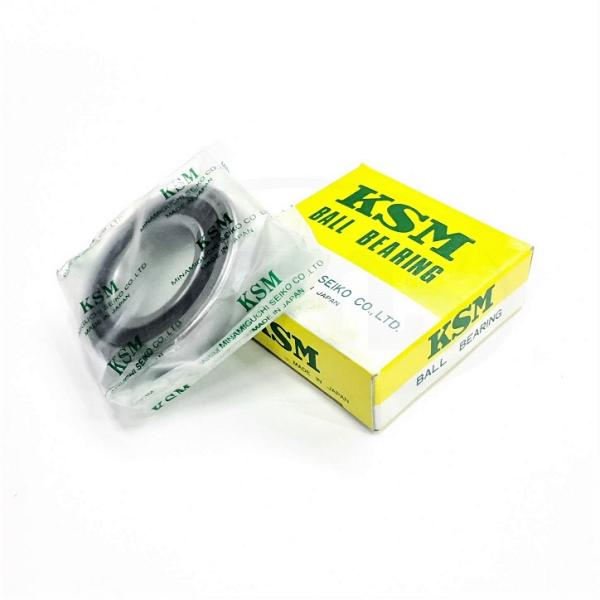

SS6200 Series KSM JAPAN

Model: SS6201-2RS
440C Stainless Steel Ball Bearing
Price Each: 14.66
Total Price: $14.66

Product Details

Manufacture:  KSM JAPAN

Bore MM:  12

Bore Decimal:  0.4724

OD MM:  32

OD Decimal:  1.2590

W MM:  10

W Decimal:  0.3940

Enclosure:  Double Sealed

Static Load Rating:  595


Weight:  0.08

6000/6200/6300 Series Single Row Deep Groove Ball Bearings
Single row deep groove ball bearings are the most widely used ball bearing type in the world due to their versatility and overall performance. They are characterized by having deep raceway grooves in which the inner and outer rings have circular arcs of slightly larger radius than that of the balls.
  • Excellent for high speeds
  • Good radial load capacity
  • Acceptable axial load capacity in both directions
  • Have low torque capacity at startup and running speeds
  • Can operate with low noise
  • Require little maintenance
These bearings have steel shields or rubber seals, installed on one or both sides and are pre-lubricated with grease. Also, snap rings are sometimes used on the outside edge. While many different retainers are available, pressed steel cages are most commonly used. Even tapered bores are available upon special order.
Single row deep groove ball bearings come in three numerical series representing the size and load capacity of each. They are:
  • 6000 Series - Extra Light Ball Bearings – Ideal for limited space applications
  • 6200 Series - Light Series Ball Bearings – Balanced between space and load capacity
  • 6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity applications
