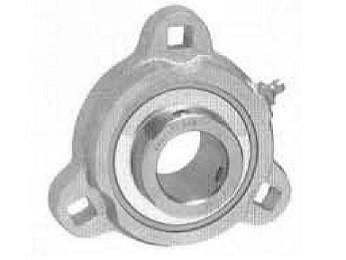

Stainless Steel 3-Bolt Flg. 1-1/4"

Model: SSBSRFB-206-20
Stainless Steel 3-Bolt Flg. 1-1/4""Circle Center
Price Each: 159.58
Total Price: $159.58
Quantity:

Product Details

Bore Fraction:  1-1/4"

Bore:  1.2500

Bolt Hole Diameter:  0.4060

Length Through Bore:  1.2710

Mounting Hole Center:  3"

Maximum Bolt Hole Spacing:  3.0000

Enclosure:  Sealed

ABEC:  ABEC-1

Weight:  1.2000

Product Files

440 Stainless Steel, Set Screws 410 Stainless Steel, slinger & Seal Frame 302 Stainless Steel, Retainer 302 Stainless Steel, Set Screw locking Collar (SNA only) 304 Stainless Steel, Seal Silicone Rubber Lubrication H-1 Food Grade Grease Operating Temp. Range -10° F to 250° F. Housings are 304 Stainless Steel Stainless steel. They are generally the most effective solution for highly corrosive applications. They do not experience the same flaking, cracking, deformation or discoloration issues associated with other corrosion resistant housing materials. They are virtually unaffected by scrapes and can easily handle significant radial loads.
