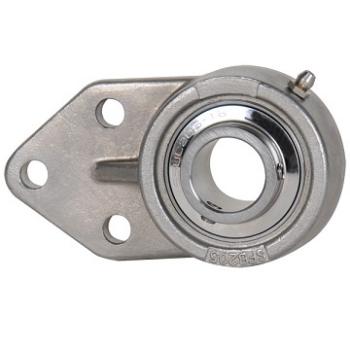

Stainless Steel 3-Bolt Bracket Flg. 3/4" Shaft

Model: SS-UCFB-204-12
Stainless Steel 3-Bolt Bracket Flg. 3/4" Shaft
Price Each: 94.95
Total Price: $94.95
Quantity:

Product Details

Bore Fraction:  3/4"

Bore:  0.7500

Bolt Hole Diameter:  5/16"

Length Through Bore:  1.3590

Mounting Hole Center:  1-1/2"

Maximum Bolt Hole Spacing:  1.5000

Enclosure:  Sealed

Weight:  1.30

Product Files

440 Stainless Steel, Set Screws 410 Stainless Steel, slinger & Seal Frame 302 Stainless Steel, Retainer 302 Stainless Steel, Set Screw locking Collar (SNA only) 304 Stainless Steel, Seal Silicone Rubber Lubrication H-1 Food Grade Grease Operating Temp. Range -10° F to 250° F. Housings are 304 Stainless Steel Stainless steel. They are generally the most effective solution for highly corrosive applications. They do not experience the same flaking, cracking, deformation or discoloration issues associated with other corrosion resistant housing materials. They are virtually unaffected by scrapes and can easily handle significant radial loads. We also special quote quanities Contact us for special pricing.
