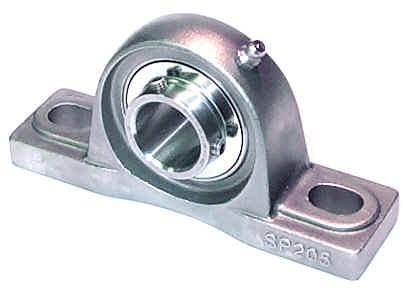

Stainless Pillow Block 1-7/16" Shaft

Model: SS-UCP-207-23
Stainless Pillow Block 1-7/16" Shaft
Price Each: 160.80
Total Price: $160.80
Quantity:

Product Details

Bore Fraction:  1-7/16"

Bore:  1.4375

Bolt Hole Diameter:  0.5630

Length Through Bore:  1.6900

Mounting Hole Center:  5.0000

Enclosure:  Sealed

Interchange:  PEER SSUCP207-23, FYH UCSP 207-23SH1, BROWNING SPS-S223, AMI MUCP207-23

Weight:  4.20

Product Files

440 Stainless Steel, Set Screws 410 Stainless Steel, slinger & Seal Frame 302 Stainless Steel, Retainer 302 Stainless Steel, Set Screw locking Collar (SNA only) 304 Stainless Steel, Seal Silicone Rubber Lubrication H-1 Food Grade Grease Operating Temp. Range -10° F to 250° F. Housings are 304 Stainless Steel Stainless steel. They are generally the most effective solution for highly corrosive applications. They do not experience the same flaking, cracking, deformation or discoloration issues associated with other corrosion resistant housing materials. They are virtually unaffected by scrapes and can easily handle significant radial loads. We also special quote quanities Contact us for special pricing.
