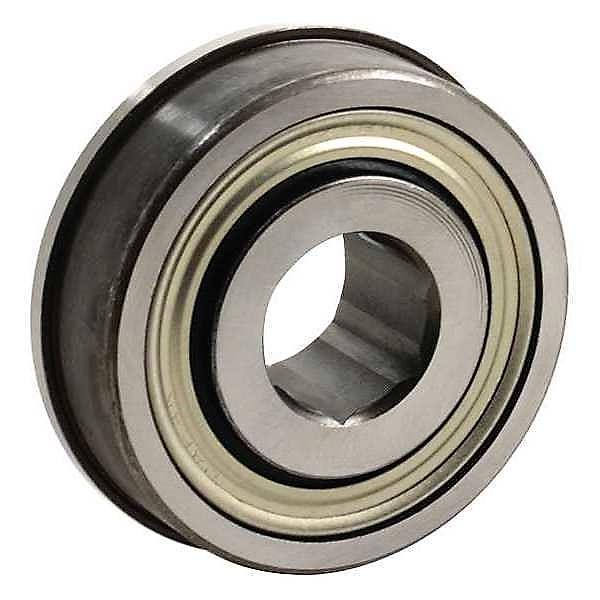

Radial Special FAFNIR Ball Bearings

Model: RX84
I.D. 0.6875-HEX O.D. 2.1248 - Flanged I.R. 0.6248 O.R. 0.6248
Price Each: Call for Availability
Quantity:


Product Details

Manufacture:  IMPORT-JAPAN

Bore MM:  17.4630

Bore Decimal:  0.6875-HEX

OD MM:  53.9750

OD Decimal:  2.1248 - Flanged

Inner Ring Width:  0.6248

Outer Ring Width:  0.6248

Enclosure:  Double Sealed

Interchange:  ZORO G3800161

Special Features:  ISO9001 : 2008

Weight:  0.14


Special Agricultural Bearing is found in many roller applications it has an oversizes 11/16" Hex Bore the O.D. is 2.1248 the inner ring width .7950 is extended, the Outer ring width is .6250 , O.D. of the flange is 2.250 , Flange thickness .1250
