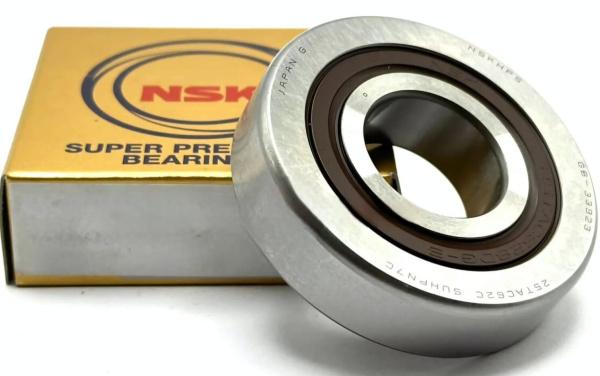

NSK Ball Screw Support Bearing

Model: 20TAC47C
Super Precision ABEC 7
Price Each: Call for Availability
Quantity:

Product Details

ID MM:  20

ID Decimal:  0.7874

OD MM:  47

OD Decimal:  1.8500

W MM:  15

W Decimal:  0.5905

ABEC:  7

Interchange:  NSK 20TAC47C

Weight:  0.32

Product Files

NSKTAC Series of Ball Screw Support Bearings for High-Load Applications. High-capacity bearings used for supporting ball screws operatiog under high loads typically adopt large diameter steel balls in order to ensure sufficent high capacity and to reduce the number of rows of combinations. Extended bearing life and higher axial-load capacity. See our Product file data sheet for techninal information.
