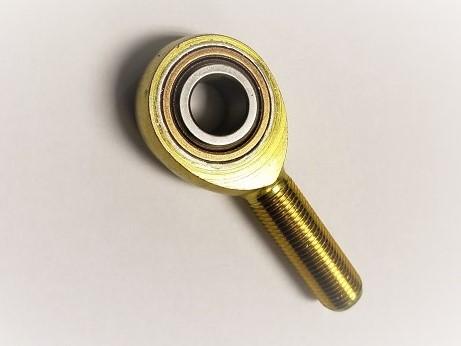

Rod End Bore 7/16" Male - 7/16"-20 Thread

Model: JMX7

Rod End Bore 3/16" Male - 10-32 Thread

Price Each: 39.89

Total Price: $39.89

Quantity:

Product Details

Bore Fraction: 7/16"

Bore: 0.4375

Right Hand: RH

Race: Sintered Bronze

Self-Lubricating: Oilite®

Static Load Rating: 4,244

Material: Chrome Ball

Thread: Male - 7/16"-20 Thread

Weight: 0.07

Rod Ends with Inch Dimensions
- Male Thread Series JMX_
- Male Thread Series JMXL_
- Female Thread Series JFX_
- Female Thread Series JFXL_
- We sell all types of rod ends Contact Us if you don't see something your looking for !

Rod Ends JMX_ & JMXL_ & JFX_ & JFXL_
3-Piece, Precision - High Strength Alloy / PTFE Liners Available

Ball: 52100 Steel Rc 56 MIN Hard Chrome Plated
Body: Steel Alloy-Heat Treated Zinc Plated Chromate Treated,
Race: Steel Alloy - Heat Treated Zinc Plated Chromate Treated.

Rod ends consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends from Rainbow have the sliding contact surface combines heat treated alloy and PTFE Liner optional.
Steel-on-bronze rod ends have very wear-resistant sliding surfaces and perform well under most conditions.
