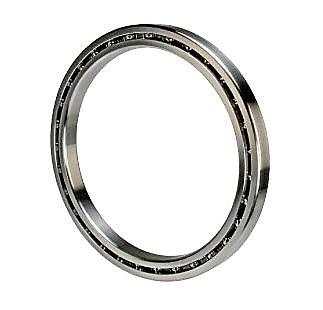

SBB Bearing 4 Point Contact X-Type

Model: RA025XPO
Thin Section Ball Bearing
Price Each: 191.36
Total Price: $191.36
Quantity:

Product Details

Bore:  2.5000

OD Decimal:  3.0000

Width:  0.2500

Li - Inner Ring:  2.6880

Lo - Outer Ring:  2.8130

Housing Fillet:  0.0250

Ball Qty.:  33

Ball Diameter:  1/8"

Speed (RPM) Axial:  4400

Static Thrust (lbs.):  2090

Static Load Rating:  830

Dynamic Load Rating:  583

Dynamic Thrust (lbs.):  910

Interchange:  Kaydon KA025XPO

Weight:  0.13

Product Files

4-Point Contact Bearings : The X-Type, or 4-Point contact ball bearings is ideal for moment loading. X-Type bearings are designed with gothic arch raceways which creates 4 contact points between the balls and raceways. The design is excellent for moment loading and reversing axial loading. The X-Type bearing can be used for other light loading conditions, but is not recommended in place of the C - or A -Type bearing for pure radial loads.
