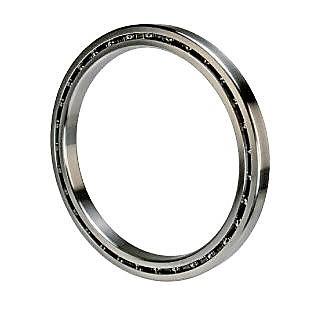

SBB Bearing C-Type

Model: RAA15CLO
Thin Section Ball Bearing
Price Each: 146.96
Total Price: $146.96
Quantity:


Product Details

Bore:  1.5000

OD Decimal:  1.8750

Width:  0.1875

Li - Inner Ring:  1.6410

Lo - Outer Ring:  1.7340

Housing Fillet:  0.0150

Ball Qty.:  29

Ball Diameter:  3/32"

Speed (RPM) Axial:  14000

Static Thrust (lbs.):  n/a

Static Load Rating:  400

Dynamic Load Rating:  225

Dynamic Thrust (lbs.):  n/a

Interchange:  Kaydon KAA15CLO

Weight:  0.04

Product Files

Radial Contact Bearings : The C-Type, radial contact ball bearing is designed with deep ball grooves to withstand high loads. Although this bearing is used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads, and moment loads.
