SBLF200-SERIES

Model: SBLF202-10
2-Bolt Flange 5/8" Shaft
Price Each: 14.14
Total Price: $14.14
Quantity:

Product Details

Manufacture:  AMEC

Shaft Size:  5/8"

Bore:  0.6250

Bearing Type:  Ball

Enclosure:  Sealed

Locking Device:  Setscrew Locking

Bearing Insert:  SB202-10

Length Through Bore:  1"

Mounting Hole Center:  2-1/2"

Bolt Hole Diameter:  5/16"

Dynamic Load Rating:  895 lbs.

Housing Material:  Cast Iron

Weight:  0.6

Product Files

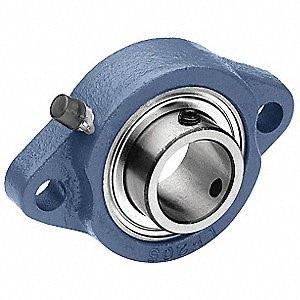

SBLF Flange Bearing
This flange bearing is designed for mounting onto flat surfaces using bolts, ensuring secure installation.

  • Housing Material: Made of cast iron, offering exceptional strength and durability.

  • Bearing Insert: Features a ball bearing insert that facilitates smooth and efficient rotation.

  • Locking Mechanism: Equipped with set screws on the inner ring, which tighten onto the shaft for secure positioning.

  • Seals: Includes seals to prevent contaminants from entering and to retain lubricant for optimal performance.
