Royersford Type E 2-Bolt Pillow Block

Model: Type E-PB-3-1/2"
Type E 3-1/2" Pillow Block Bearing Made in USA
Price Each: 1,085.03
Total Price: $1,085.03
Quantity:

Product Details

Manufacture:  Royersford

Shaft Size:  3-1/2"

Bore:  3.5000

Bearing Type:  Timken Tapered Roller

Enclosure:  Sealed

Locking Device:  Setscrew Locking

Length Through Bore:  5"

Minimum Bolt Hole Spacing:  10-13/16"

Base:  2-Bolt

Maximum Bolt Hole Spacing:  11-3/16"

Dynamic Load Rating:  15,300

Housing Material:  Cast Iron

Max RPM:  1,640

Interchange:  20-02-0308

Weight:  44.00

Product Files

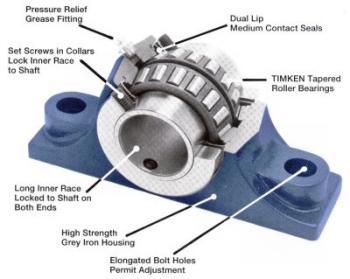

Royersford 20-02-0103 Made in USA "TYPE E" Pillow Blocks are most widely used of the "E" Series due to the variety of mounting methods. They are available in both 2-bolt base and 4-bolt base styles. All units are supplied with Timken® tapered roller bearings, dual locking collars and Royersford exclusive dual lip, medium contact seals.
