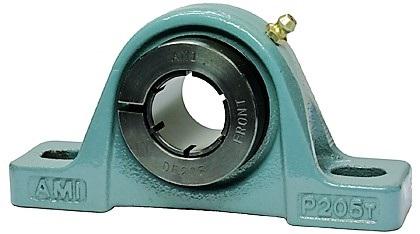

ACCU-LOC® 200-SERIES PILLOW BLOCK

Model: UEP205-16
ACCU-LOC® Pillow Block 1" Shaft
Price Each: 46.66
Total Price: $46.66
Quantity:


Product Details

Manufacture:  AMI-ASAHI

Shaft Size:  1"

Bore:  1.0000

Bearing:  Ball

Enclosure:  Sealed

Locking Device:  ACCU-LOC®

Bearing Insert:  UE205-16

Length Through Bore:  1.3940

Minimum Bolt Hole Spacing:  3-3/4"

Overall Height:  2-3/4"

Maximum Bolt Hole Spacing:  4-1/2"

Recommended Bolt:  1/2"

Housing Material:  Cast Iron

Weight:  1.94

ACCU-LOC® TAP BASE PILLOW BLOCKS Concentric Locking 51000 Bearing Steel W/Black Oxide Finish Cast Iron Housing inch series. Excellent for High Speed Applications Minimizes Vibration and Noise Requires Collar Easy to Install and Remove Does Not Damage Shafting.
