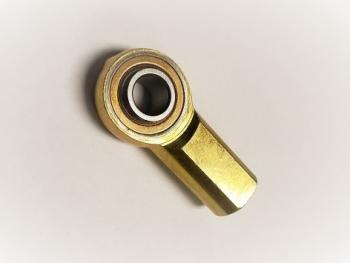

Rod End Bore 3/8" Right Hand Female

Model: F6SB
Rod End Female - 3/8"
Price Each: 12.44
Total Price: $12.44
Quantity:


Product Details

Bore Fraction:  3/8"

Bore:  0.3750

Right Hand:  RH

Self-Lubricating:  Oilite®

Static Load Rating:  3,950

Material:  Chrome Ball

Race:  Sintered Bronze

Thread:  Female - 3/8"-24 Thread

Weight:  0.23

Interchange:  ALINABAL VF6/VXF6, SEALMASTER TF6, HEIM HF6/HF6-C, SPHERCO TF6

Product Files

Rod Ends MBM and MBF
Rod ends consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends from Rainbow have the sliding contact surface combines steel-on-bronze.
Rod Ends Requiring Lubrication
Steel-on-bronze rod ends have very wear-resistant sliding surfaces and perform well under conditions of lubricant starvation. Rod ends with this sliding contact surface combination require regular republication. They are particularly suited for bearing arrangements where heavy alternating loads have to be accommodated.

  • Rod Ends with Inch Dimensions
    • Male Thread Series       MBM
    • Female Thread Series   MBF
  • Rod Ends with Metric Dimensions
