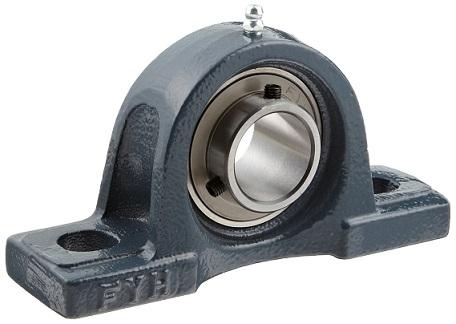

FYH 5/8" Pillow Block Bearing

Model: UCP202-10
5/8" Shaft Pillow Block Bearing UCP
Price Each: 23.60
Total Price: $23.60
Quantity:

Product Details

Manufacture:  FYH

Shaft Size:  5/8"

Bore:  0.6250

Bearing Type:  Ball

Enclosure:  Sealed

Locking Device:  Setscrew Locking

Bearing Insert:  UC202-10

Length Through Bore:  1.2200

Minimum Bolt Hole Spacing:  3-3/8"

Maximum Bolt Hole Spacing:  4-1/8"

Recommended Bolt:  3/8"

Dynamic Load Rating:  2,220

Housing Material:  Cast Iron

Interchange:  SEALMASTER NP10, FAFNIR YAS 5/8

Weight:  1.4000

Product Files
We offer FYH, AMI, UCP Pillow Blocks, also known as a plummer block or housed bearing units have 2 set screws to lock down on the desired shaft. The bearing is mounted in a cast iron pedestal housing used to provide support for a rotating shaft. FYH & AMI is highest quality japanese bearings in industry today. Housing material for a pillow block is typically made of cast iron or cast steel. We also sell Dodge, SKF, Fafnir, Linkbelt, Moline, Hub City and more.
