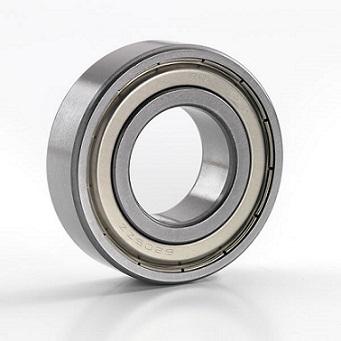

R Inch Series R12-ZZ

Model: R12-ZZ
ID. 3/4" OD. 1-5/8" W. 7/16" Double Sheilded
Price Each: 7.45
Total Price: $7.45
Quantity:

Product Details

Bore Fraction:  3/4"

Bore Decimal:  0.7500

OD Fraction:  1-5/8"

OD Decimal:  1.6250

W Decimal:  0.4375

Description:  Inch Series Ball Bearing

ABEC:  ABEC-3

Static Load Rating:  890

Enclosure:  Double Sheilded

Interchange:  FAFNIR S7KDD, FAG R12-2Z, MRC R-12FF, NDH 77R12, NTN R12ZZ

Weight:  0.100

Product Files

R Series Ball Bearings
The R-Series ball bearings, named for the R prefix model numbers, are also known as our precision Inch series ball bearings. This series are radial ball bearings with inch dimensions available from 1/8" through 1-1/2" inch bore sizes. The R-Series configurations are available open, shielded, and sealed arrangements. Some of the open sizes the width's changes, they are narrower than the sealed or shielded bearings. You will find sealed and shielded type on our website. Open type bearings are available on request. The R-Series is a favorite design application for many engineers. Please call our sales team for any question you might have.
