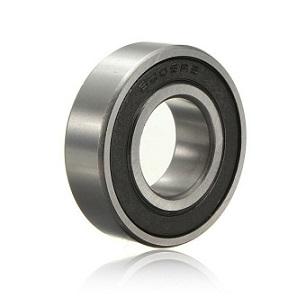

R Inch Series R20-2RS

Model: R20-2RS
ID. 1-1/4" OD. 2-1/4" W. 1/2" Double Sealed
Price Each: 18.22
Total Price: $18.22
Quantity:


Product Details

Bore Fraction:  1-1/4"

Bore Decimal:  1.2500

OD Fraction:  2-1/4"

OD Decimal:  2.2500

W Decimal:  0.5000

Description:  Inch Series Ball Bearing

ABEC:  ABEC-3

Static Load Rating:  1,550

Enclosure:  Double Sealed

Interchange:  FAG R20-2RS, MRC R-20ZZ, NTN R20-2RS

Weight:  0.210

Product Files

R Series Ball Bearings
The R-Series ball bearings, named for the R prefix model numbers, are also known as our precision Inch series ball bearings. This series are radial ball bearings with inch dimensions available from 1/8" through 1-1/2" inch bore sizes. The R-Series configurations are available open, shielded, and sealed arrangements. Some of the open sizes the width's changes, they are narrower than the sealed or shielded bearings. You will find sealed and shielded type on our website. Open type bearings are available on request. The R-Series is a favorite design application for many engineers. Please call our sales team for any question you might have.
