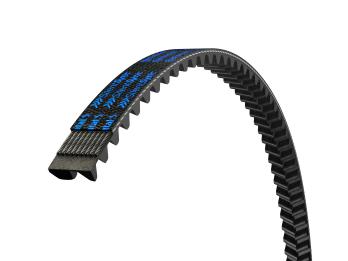

Continental SilentSync Blue B-1960 Timing Belt

Model: B-1960 SilentSync
Continental SilentSync (Formally) Goodyear Eagle NRG®
Price Each: Call for Availability
Total Price: $413.34
Quantity:


Product Details

Belt Section:  Eagle NRG Blue

Interchange:  B1960 Goodyear Eagle NRG, B-1960 Goodyear Eagle NRG

Manufacture:  Continental

Number Of Teeth:  140

Outside Length (in.):  77.17

Outside Length MM:  1960

Pitch Datum MM:  14

SAP #:  20038903

Weight:  1.07

Width MM:  35

Product Files

SilentSync’s patented Helical Offset Tooth (H.O.T.) design merges belt and sprocket into the quietest, smoothest and one of the most compact synchronous drive packages available. The result is a continuous rolling tooth engagement that reduces vibration and improves the overall efficiency of your drive system.

SilentSync Advantages:
  • Up to 25% more power capacity
  • Static conductivity
  • Up to 19dB quieter than straight tooth belts
  • Over 1,500 possible sprocket combinations
  • Rated for continuous service at 200° F
  • Up to 98% energy efficiency
